Structure & Production Process

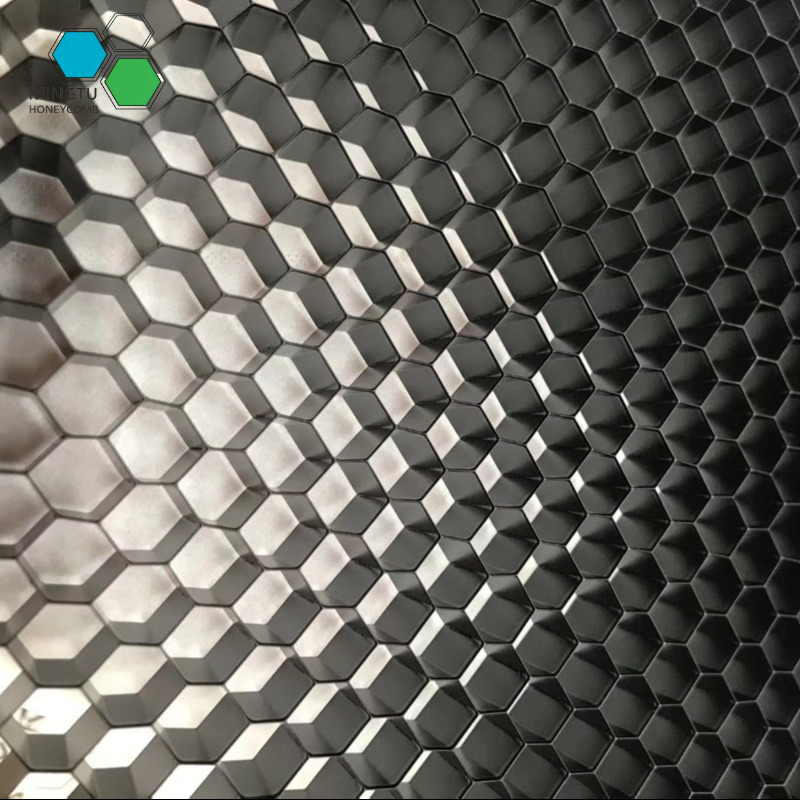

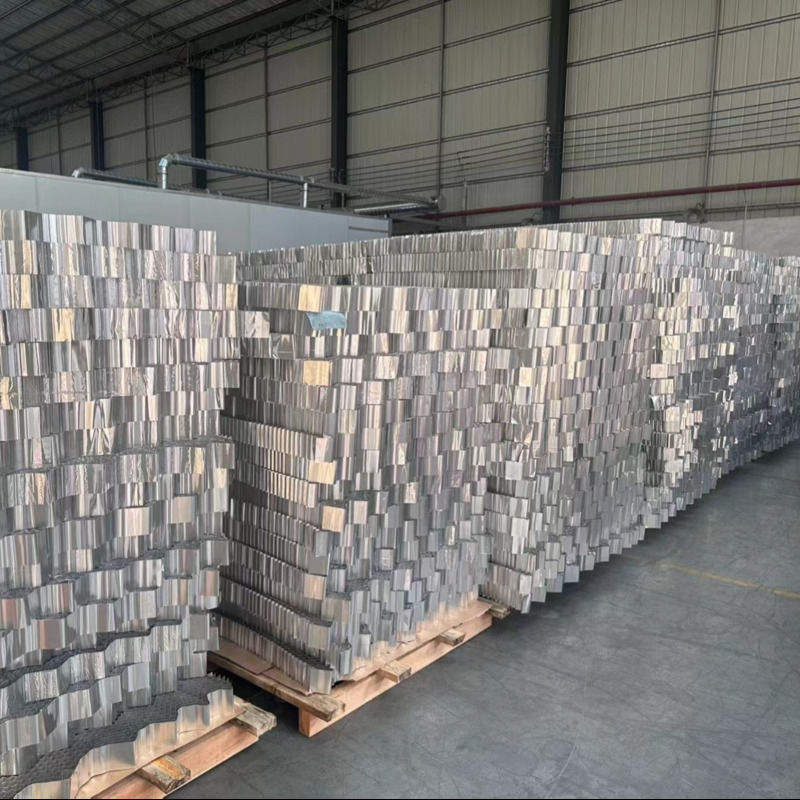

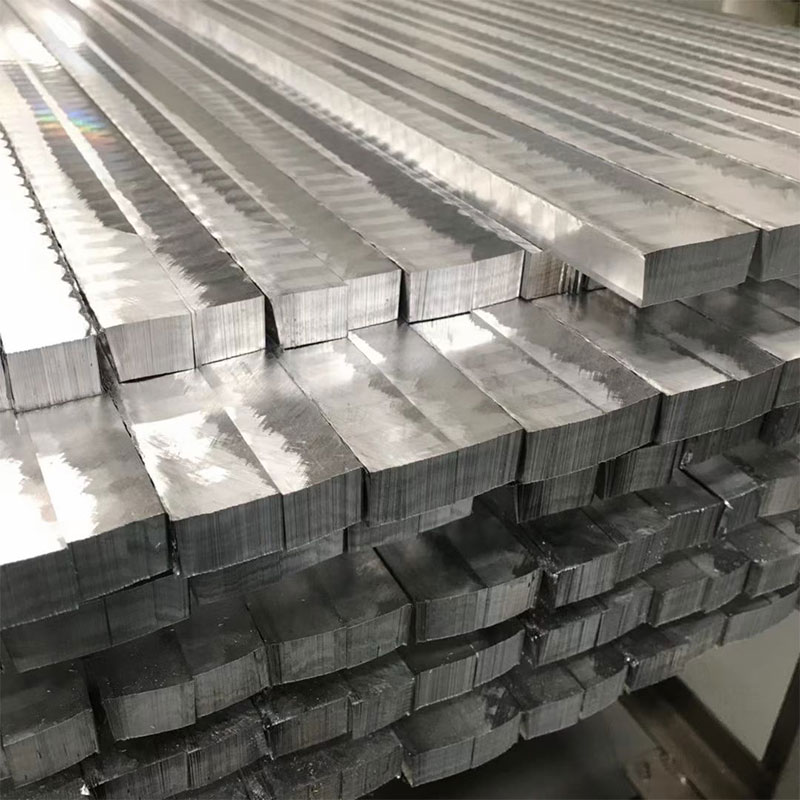

Multi-layer aluminum foil coated with high-temperature resistant adhesive, stacked and pressed into honeycomb blocks; cut into slices as required, then expanded into neat hexagonal cavities. Micro perforation on single/double sides is optional to improve acoustic performance. Two supply forms: unexpanded block (expand on site by buyers) and finished expanded sheet (ready for lamination).

Technical Specifications

Aluminum honeycomb core

Microporous honeycomb core

Normal honeycomb core

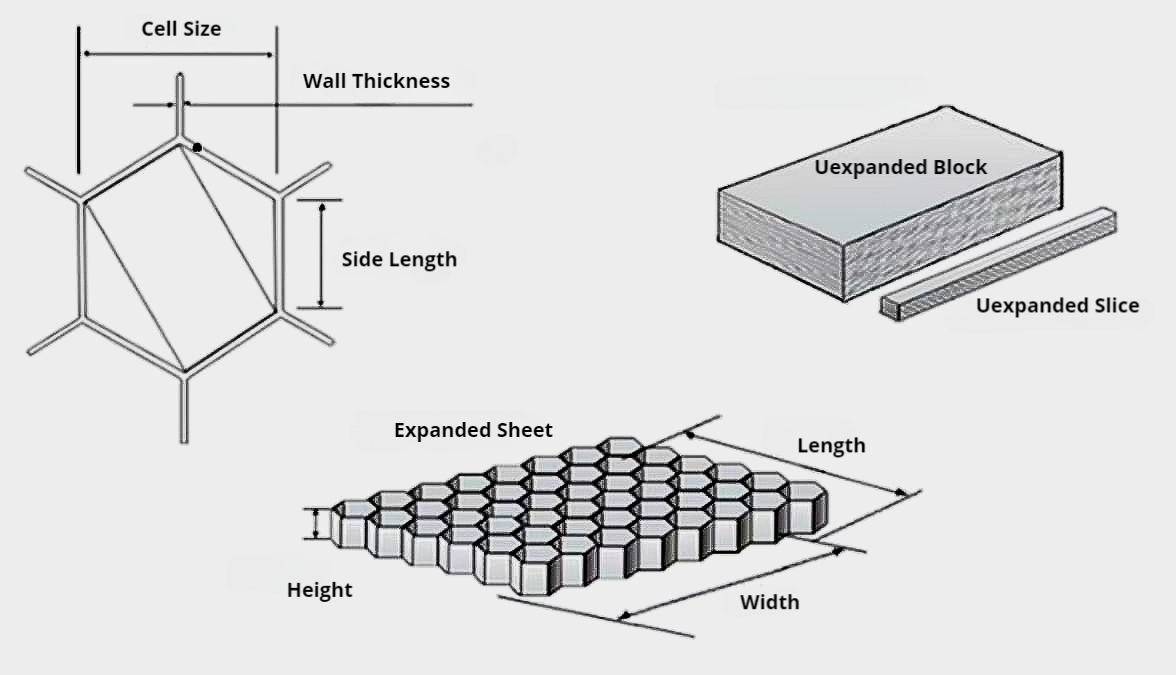

Side length(mm)

A=0.6

A=1

A=1.5

A=1.83

A=2

A=2.5

A=3

A=4

A=5

A=6

A=7.5

A=10

A=12

A=15

Cell size

1/25  inch 1.03mm

1/15  inch 1.73mm

1/10  inch 2.6mm

1/8  inch 3.17mm

1/7 inch 3.46mm

1/6  inch 4.33mm

1/5  inch 5.2mm

1/4  inch 6.93mm

1/3  inch 8.66mm

3/8  inch 10.39mm

1/2  inch 12.99mm

3/4  inch 17.32mm

4/5 inch 20.78mm

1  inch 25.98mm

L*W*H

Can be customized

Foil thickness

3003H18(0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.08mm0.1mm) 5052H18(0.04mm/0.05mm/0.06mm)

HS Code

76169990

Core Export Advantages

1. Ultra High Specific Strength: Only 1/6 weight of solid aluminum, excellent compression & bending resistance, cut down panel weight & ocean freight cost

2. Full Aluminum Class A1 Fireproof: No combustible composition, meet fire certification standards for overseas construction, marine and rail transit

3. Superior Anti-Corrosion: Chrome-free passivation treatment, resistant to marine salt spray and humid overseas climate

4. Sound & Thermal Insulation: Closed honeycomb cavities block sound and heat transfer, ideal core for acoustic & thermal insulation export projects

5. Easy Processing: Support cutting, bending, hot curving and drilling, fit curved & special-shaped sandwich panels

6. Eco-Friendly & Recyclable: 100% recyclable aluminum, formaldehyde-free, conform to EU RoHS export standard

7. Stable Export Capacity: Monthly output 200,000 sqm, standard lead time 7–12 days, production scheduling for bulk overseas orders

8. Standard Export Package: Fumigated wooden case / moisture-proof wood frame, anti-pressure & moisture-proof for sea container shipment

FAQ

1. Can aluminum honeycomb core export to Europe & USA? Are eco and fire certificates complete?

   Yes, exportable. Chrome-free coating complies with RoHS, complete Class A1 fire test reports provided, full customs clearance documents available to meet EU & US import standards for construction and marine industry.

2. How to choose unexpanded or expanded honeycomb core?

   Choose unexpanded block for bulk long-term purchase with self-owned expanding machine, smaller shipping volume & lower ocean freight. Choose finished expanded sheet for small orders without processing equipment, ready for panel lamination after delivery.

3. Is this honeycomb core suitable for seaside & high salt spray environment?

   5052 alloy with chrome-free anti-corrosion passivation is recommended, excellent salt spray resistance, specially for marine and coastal facade export projects.

4. How to prevent moisture & deformation during sea transportation?

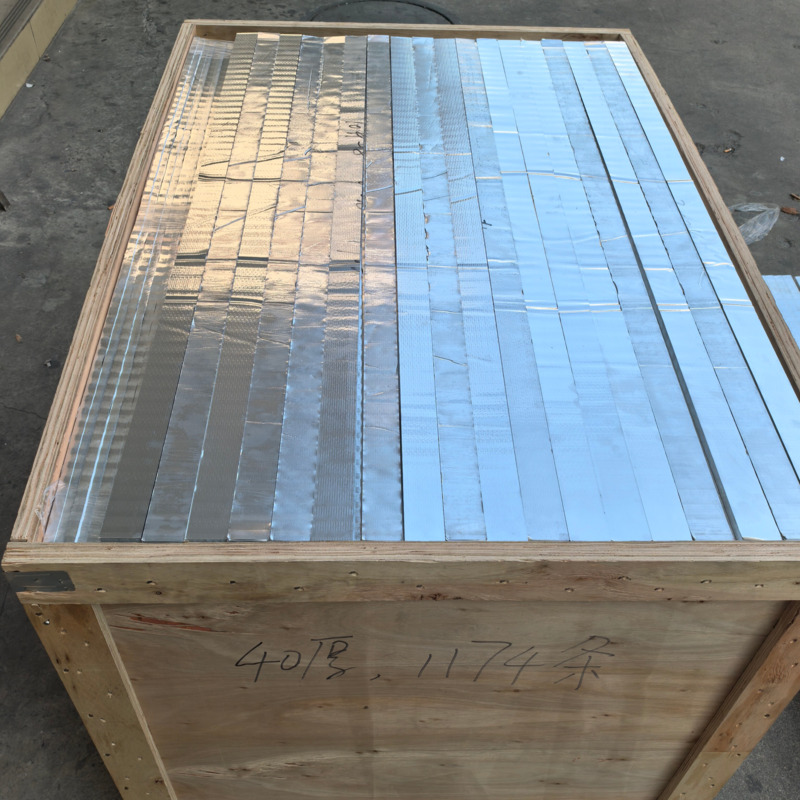

   Honeycomb core wrapped with moisture-proof film, packed in fumigated wooden case filled with pearl cotton, reinforced steel belt for case, anti-pressure & moisture-proof in container stacking.
