Marine Grade 5052 Aluminum Honeycomb Panel SOLAS Fireproof Ship Cabin Bulkhead Ceiling Board


Availability:

Quantity:



Inquire Add to Basket

Our marine aluminum honeycomb panels adopt 5052 marine anti-corrosion aluminum alloy skins matched with all-aluminum honeycomb core. The products pass complete flatwise compression, bending, shear and neutral salt spray aging tests, meet SOLAS fire protection standards . Ultra-light, high rigidity, corrosion-resistant and low-smoke, widely used for ship cabin bulkheads, ceilings, yacht decks and marine interior partitions.

Code:
7616999000

Marine aluminum honeycomb panel Ship honeycomb bulkhead Yacht ceiling honeycomb board Fireproof aluminum honeycomb core SOLAS B15 B0 C-Class honeycomb CCS ship interior board IMO fire standard honeycomb Cruise cabin partition honeycomb Marine equipment housing honeycomb board

Product Description

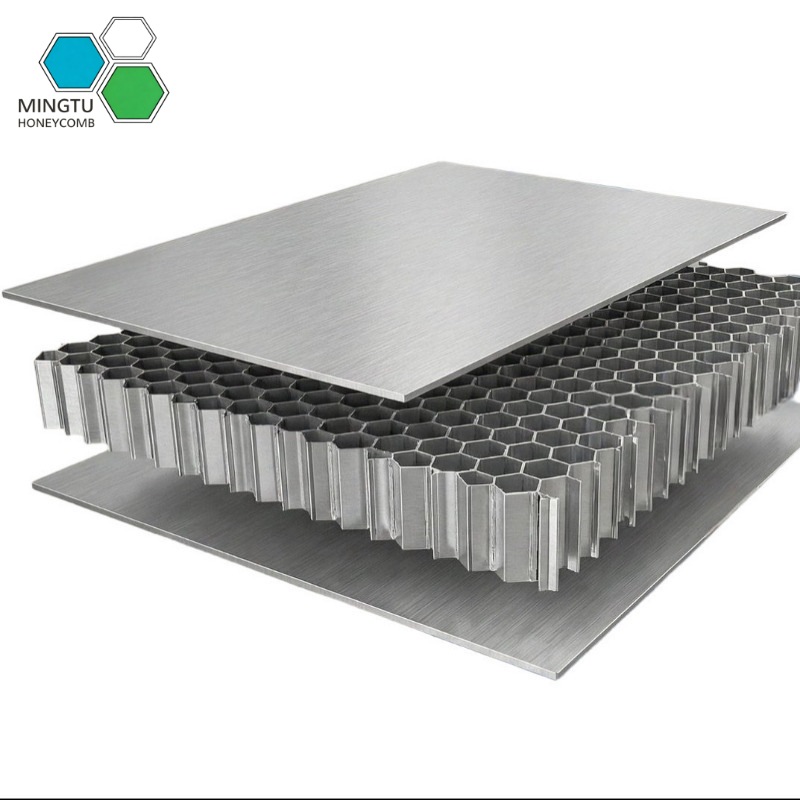

Marine grade aluminum honeycomb panel is a lightweight sandwich composite specially developed for marine and shipbuilding industry. It consists of two layers of 5052 anti-corrosion aluminum alloy skins and integrated aluminum honeycomb core bonded with high-strength marine adhesive. Compared with traditional steel and solid aluminum plates, it reduces weight by 60%-75% while maintaining superior mechanical performance, effectively lowering ship load and energy consumption.

Core Performance & Lab Testing

All our marine honeycomb panels are tested in our professional testing laboratory to guarantee marine service life:

1. Flatwise Compression Test: High vertical bearing capacity, resistant to heavy impact from ship equipment.

2. Flexural Performance Test: Excellent bending rigidity, no deformation under long-term hull vibration.

3. Shear Strength Test: Stable adhesive interface, no delamination under lateral shear force during navigation.

4. Neutral Salt Spray Corrosion Test: Over 3000h salt fog resistance, adapt to offshore high humidity and salt corrosive environment.

The panel achieves SOLAS B-15, B-0 and C-Class fire ratings, featuring low smoke density and non-toxic combustion, fully complying with closed cabin safety requirements.

Certifications & Material Specifications

1. Alloy Material: Skin 3003 / Marine grade 5052 aluminum; All-aluminum hexagonal honeycomb core

2. Fire Standard: IMO FTP, SOLAS fire classification B-15 / B-0 / C-Class

3. Marine Certificates: EU MED certification available on request

4. Custom Sizes: Custom panel thickness 10mm-30mm, skin thickness 0.8mm-1.5mm, customized width & length

5. Surface Treatment: Brushed aluminum, PVDF coating, HPL fireproof veneer, anti-slip textured finish for yacht deck

Wide Marine Application Scope

1.Cruise & Cargo Vessel Interior: Cabin partition walls, corridor ceiling, toilet waterproof wall panels, storage cabinet boards, fire door core materials

2.Yacht & Luxury Ship: Anti-slip walking deck, interior decorative panels, sound insulation bulkheads

3.Offshore Platform & Marine Equipment: Equipment protective housing, ventilation duct boards, radar lightweight support frames

4.Ship Auxiliary Structure: Floating bridge panels, stair tread plates, marine operation platform boards

We are professional aluminum honeycomb manufacturer with independent test laboratory. We support customized size, surface finish and fire grades according to client ship projects. All test reports, fire inspection documents and marine certification files can be supplied for shipyard approval. Stable supply, short lead time and professional one-stop solution for marine composite panel.
